PRODUCT RANGE

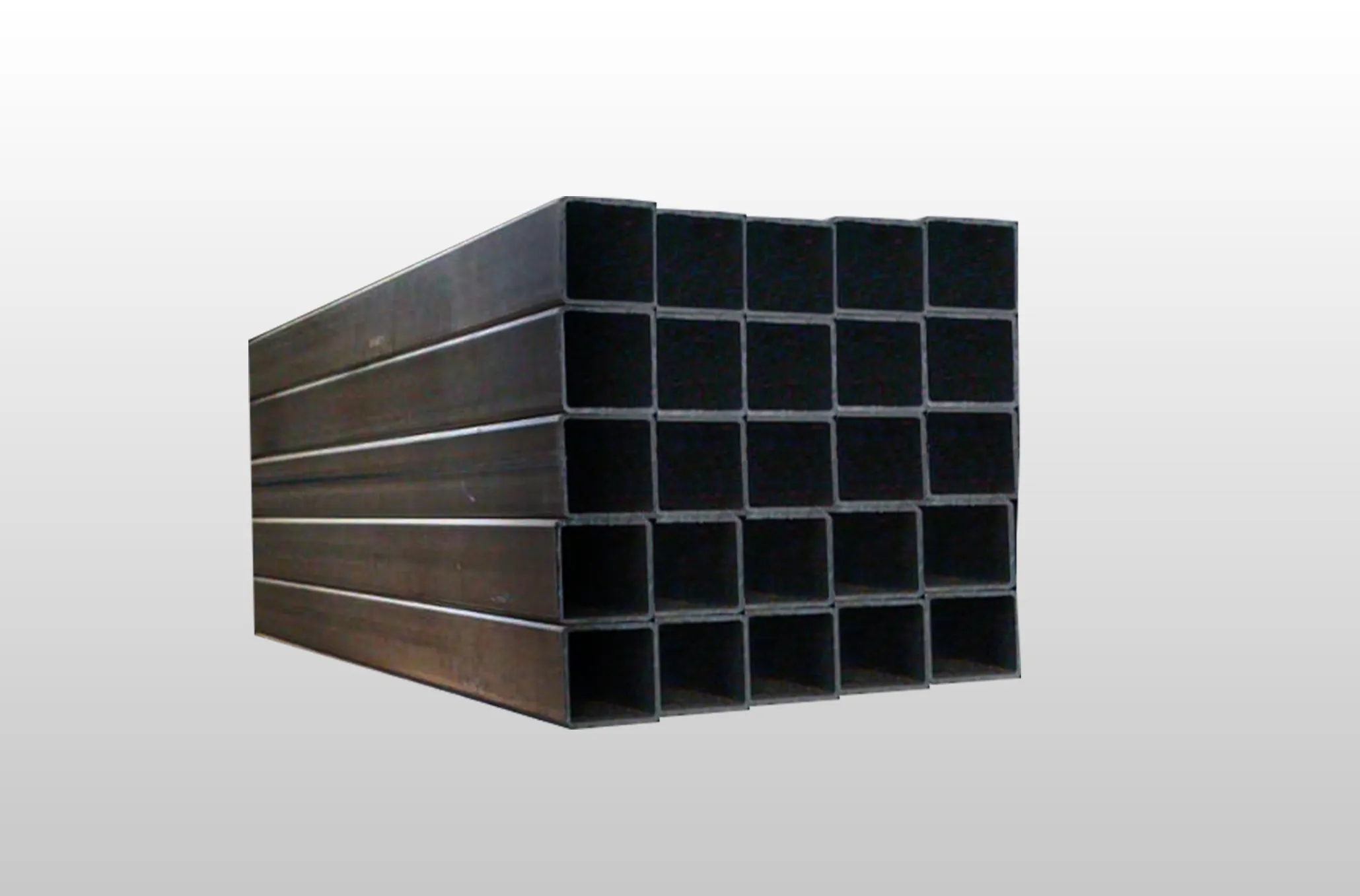

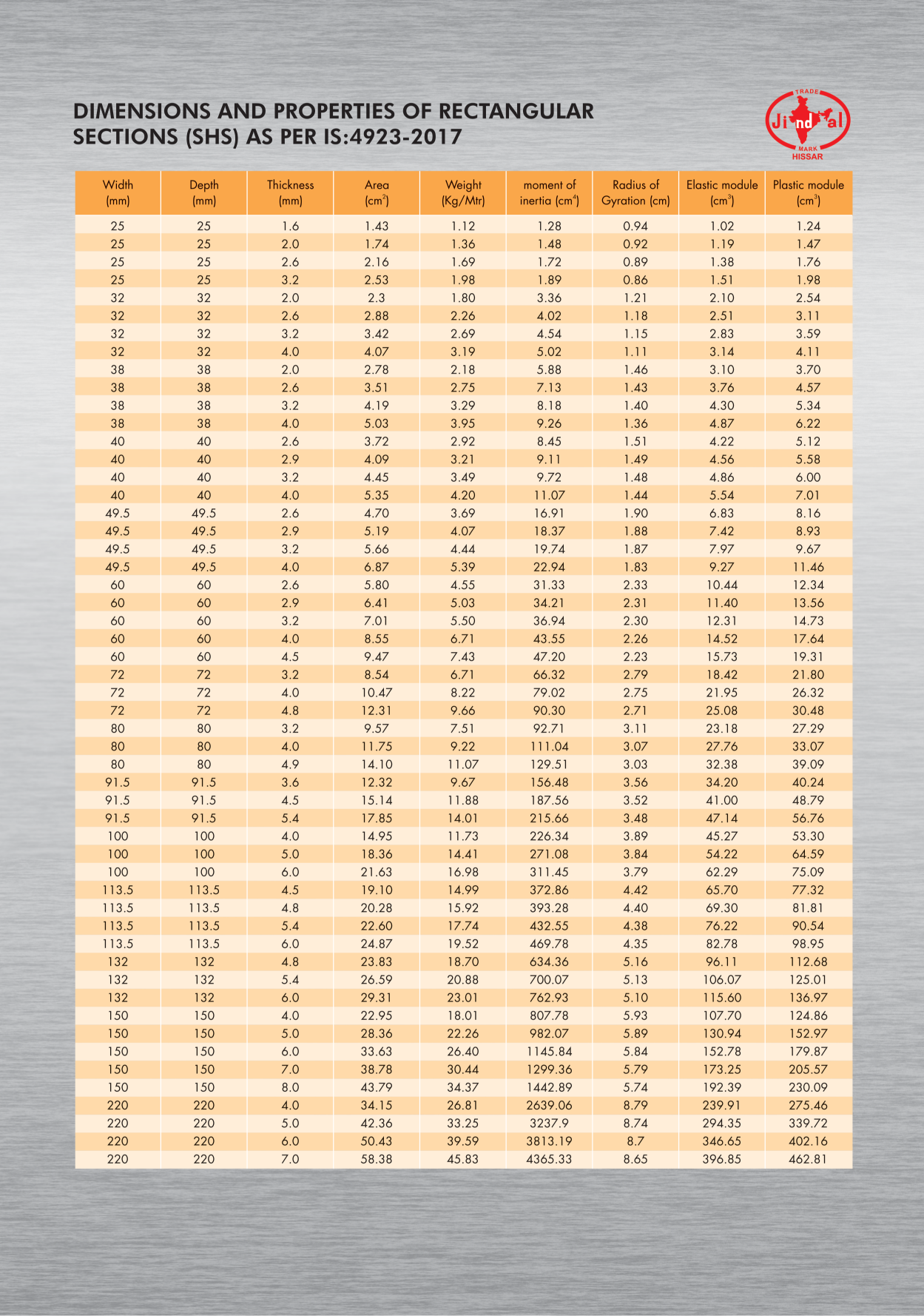

Jindal Pipe-Hissar, along with round pipes, is also involved in the manufacture of Hollow sections, both RECTANGULAR HOLLOW SECTION & SQUARE HOLLOW SECTION. These sections fall under the category of COLD FORMED HOLLOW SECTION.

Jindal Pipe-Hissar products have earned a reputation for impeccable quality and total reliability in Square, Rectangular, Circular MS Hollow Section Pipes for structural purposes. The name has become synonymous with the best in cold-formed Steel Hollow Sections. Manufactured in its state-of-the-art manufacturing plant, the MS Hollow Section Pipes are regarded as the best for their excellent quality and reliability. Jindal Pipe-Hissar has BIS certification for IS:4923-2017 and IS:1161-2018, backed by our reputed brand name JINDAL-HISSAR.

Hollow sections are supplied to clients nationwide for various applications, including mechanical engineering, for manufacturing booms, frames, and other vehicle components. Especially for applications where high strength combined with excellent usability is needed, JINDAL-HISSAR MS Hollow Section Pipes are comparably more efficient, convenient, durable, and have a long life span than conventional steel sections.

The excellent distribution of material around the axis of the square and rectangular steel hollow sections allows for remarkable strength qualities, offering decisive advantages in its applications. The smooth and uniform profile of the MS Hollow Section Pipes minimizes corrosion effects and facilitates easy onsite fabrication, significantly enhancing the aesthetics of structures. A higher strength-to-weight ratio credits these pipes with nearly a 20% reduction in the use of steel.

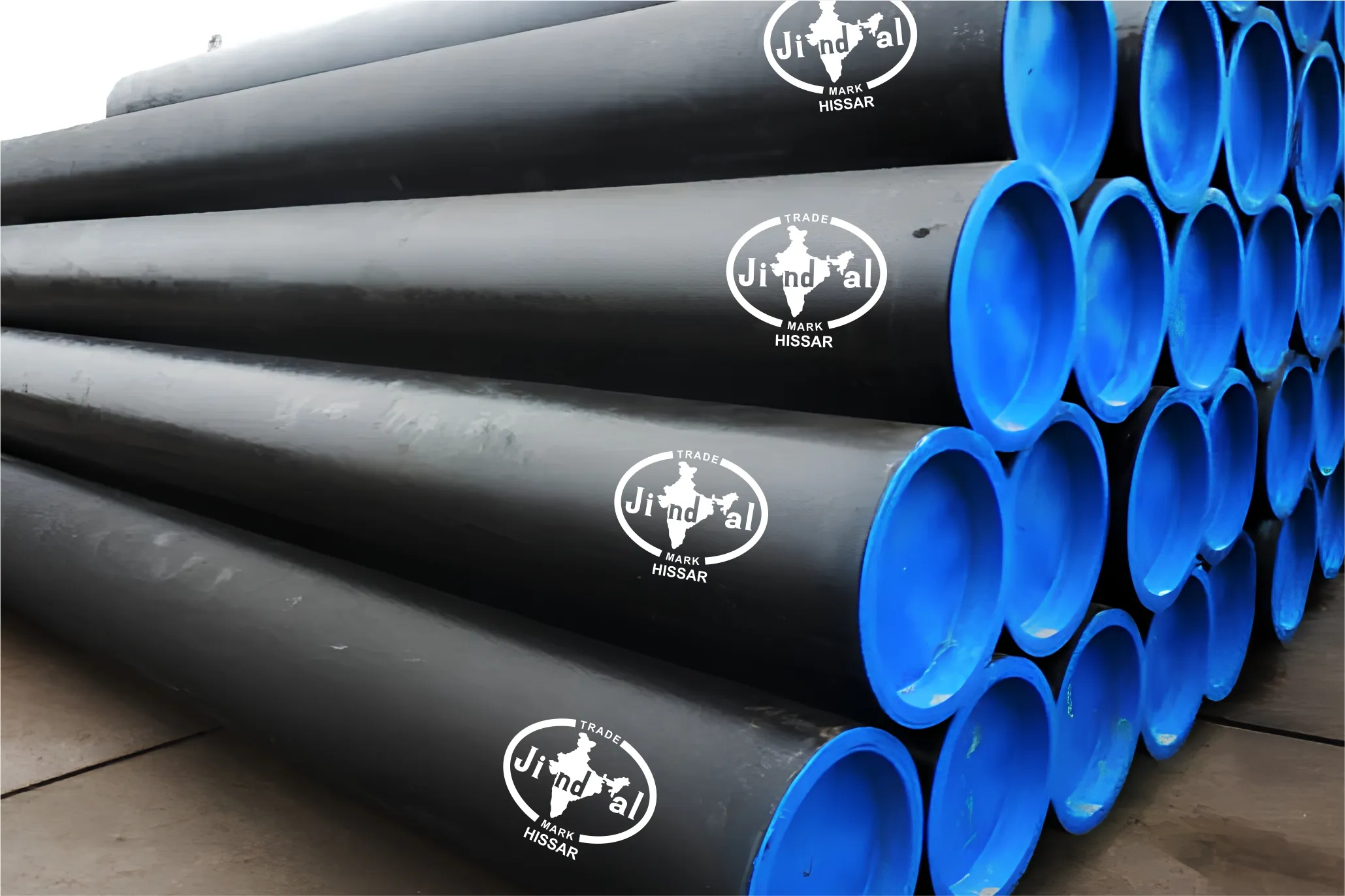

Jindal-HISSAR never compromises on quality, even under the most adverse market conditions. Mainly SAIL and JSW materials in steel are used to cater to high-quality hollow sections (Square, rectangular, and circular), pipes/tubes. Our hollow sections and pipes are engraved with the ISI mark and trademark ‘Jindal’ with the device of the map of India in oval shape and the word 'HISSAR' underneath, which has become synonymous with high quality. Each hollow section, pipe, or tube manufactured by JINDAL INDUSTRIES PVT LIMITED is a testimony to our commitment to quality and service. JINDAL INDUSTRIES PVT LIMITED is a prestigious company of JINDAL, which has proved its unerring might in the steel sector, having an unstinted record of four decades of service to the nation, building on a long-standing tradition of quality steel pipes and tubes.

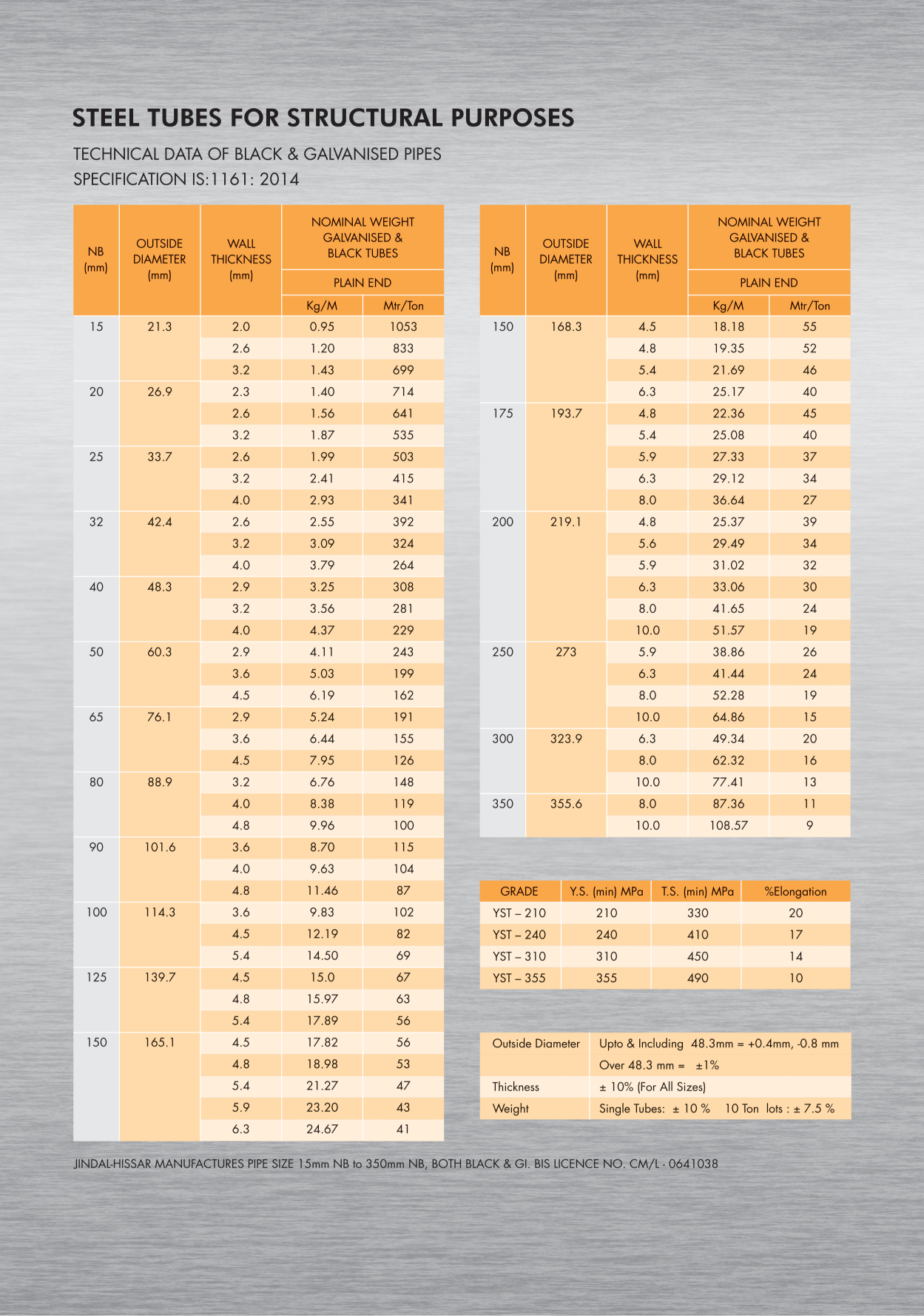

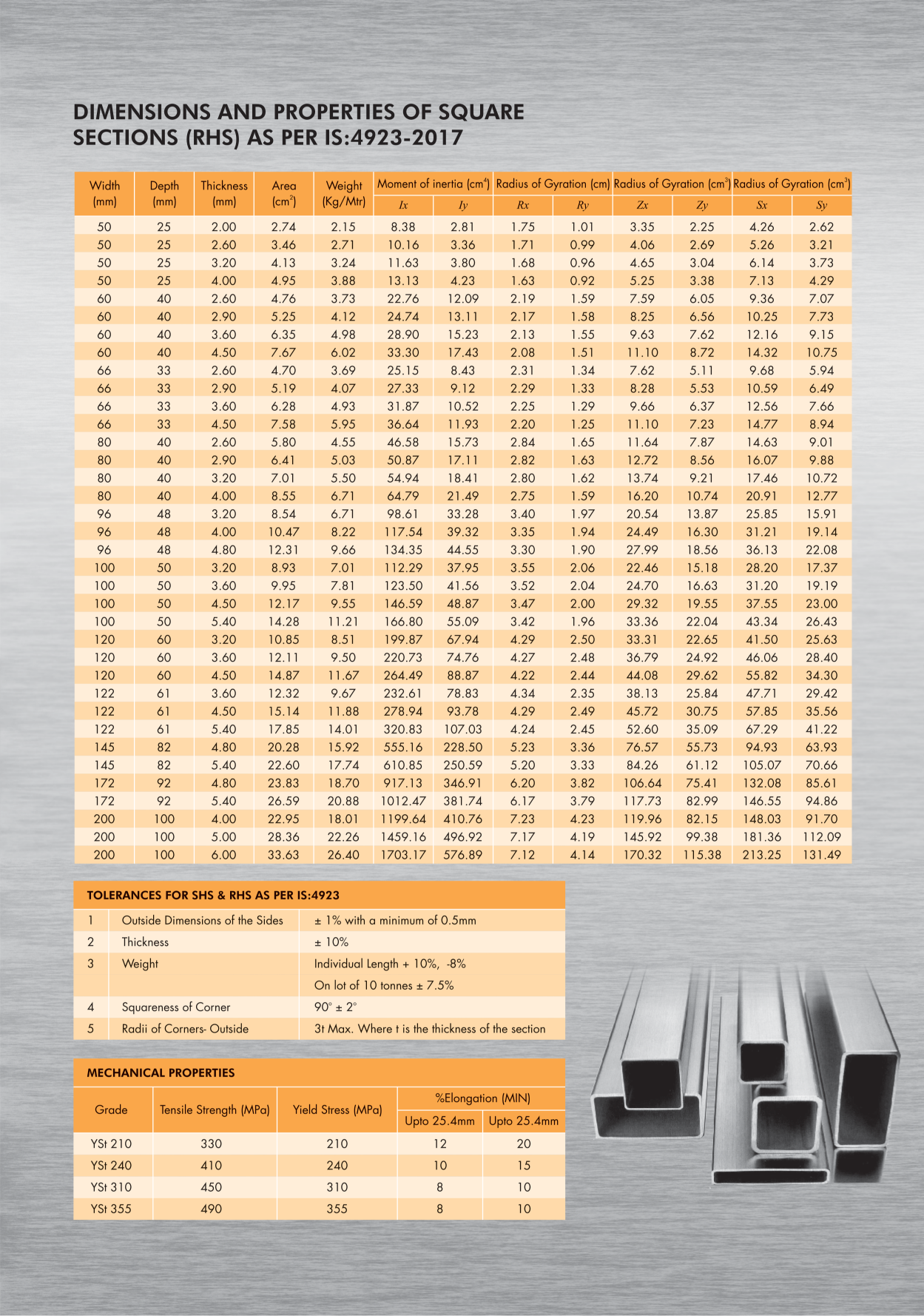

The best part of Jindal Pipe-Hissar hollow sections is that they are available in all grades that fall under the specification:
YST 210
YST 240
YST 310
YST 355

All under one roof. As the section pipes come in various sizes, the customer can choose the right size for their specific use. With the advancement of prefabricated structures, the demand for high yield strength hollow sections has increased, and Jindal Pipe-Hissar is not behind in this race. Less wall thickness and high yield strength help replace heavier low yield strength material of high thickness, reducing the weight of the structure, the cost, and increasing the safety factor.

Due to easy disbursement of heat, these hollow sections are used in places with high working temperatures. As the hardness of the material increases, the rate of corrosion decreases, thus giving a longer life to the structure fabricated using Jindal Pipe-Hissar hollow sections. In addition to being lightweight, they are sturdier and have precise dimensions. All these factors contribute to the long service life of Jindal-Hissar section pipes. As the Jindal-Hissar hollow section pipe can withstand extreme weather conditions, it's a favorite for fabricators of industrial sheds, bridges, and other structures. It can be said that Jindal Pipe-Hissar hollow sections are less expensive and deliver good performance, similar to the high-quality round hollow sections it has been delivering since its inception.

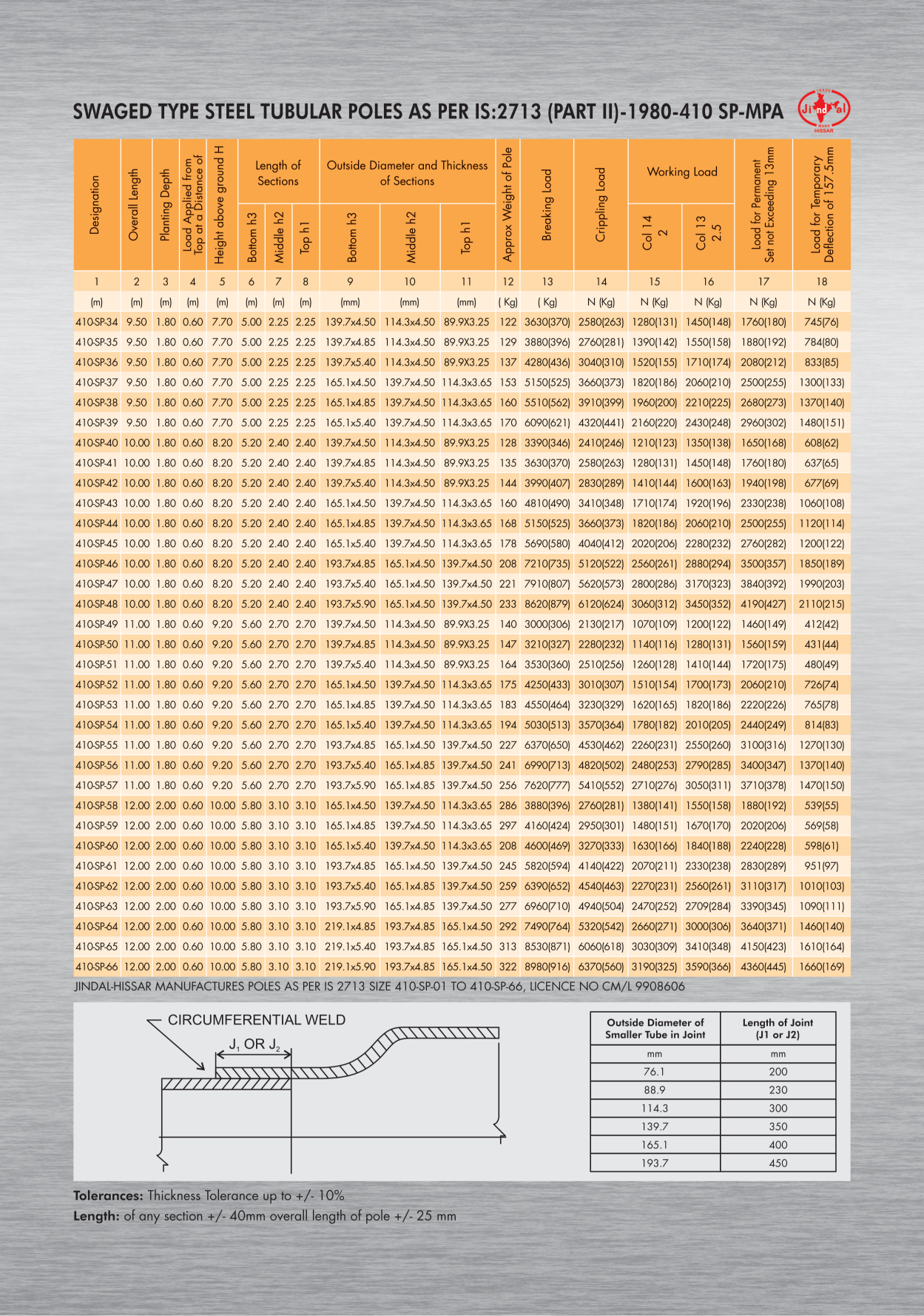

Poles – as the name defines, a long piece of metal to hold something up. Swaged Tubular Pole is another high-quality product of Jindal-Hissar, conforming to IS:2713(Part-1 to 3) – 1980, used to hold electric current wires for conveying current for short as well as long distances. The Swaged Tubular Poles of smaller height/length may be either used as poles for lighting, or similarly poles of larger height/length may be used for holding wires for long-distance electricity/current conveyance.

Production of Jindal-Hissar Swaged Steel Tubular Pole starts with steel in the form of HR coils procured from the finest steel rolling mills, SAIL, JSW, JSPL, to name a few. The raw material used is as per IS:10748. Further, the coils are rolled on sophisticated mills to manufacture high-frequency induction ERW pipes as per IS:1161. These pipes are further processed to make a pole as per IS:2713, with diminishing diameters from bottom to top. In addition, each pole is supplied with base plates of cast iron for strengthening ground support.

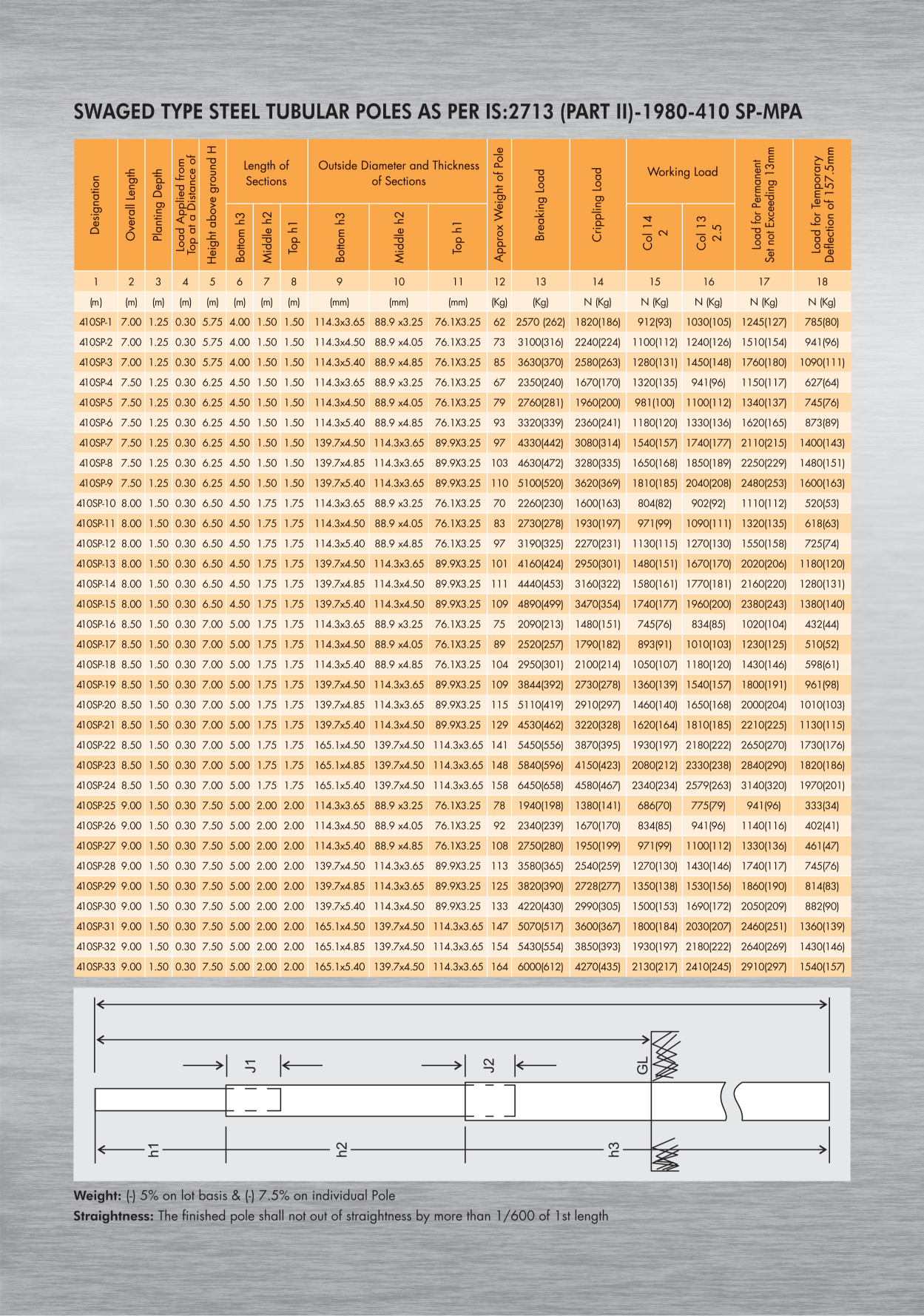

Jindal-Hissar supplies Swaged Tubular Poles of designation 410SP-1 to 410SP-66, from 7 meters in overall length to 12 meters overall length, depending upon the use.

Jindal-Hissar Swaged Tubular Poles, being round in shape, offer minimum wind resistance. Unlike cement poles, which are rectangular in shape and take heavy beating during adverse climate conditions, Jindal-Hissar Swaged Tubular Poles are very elastic, and their high strength absorbs shocks without losing shape, standing upright through high turbulence. Because of this property, they are majorly used in hilly areas, where wooden poles were previously used.

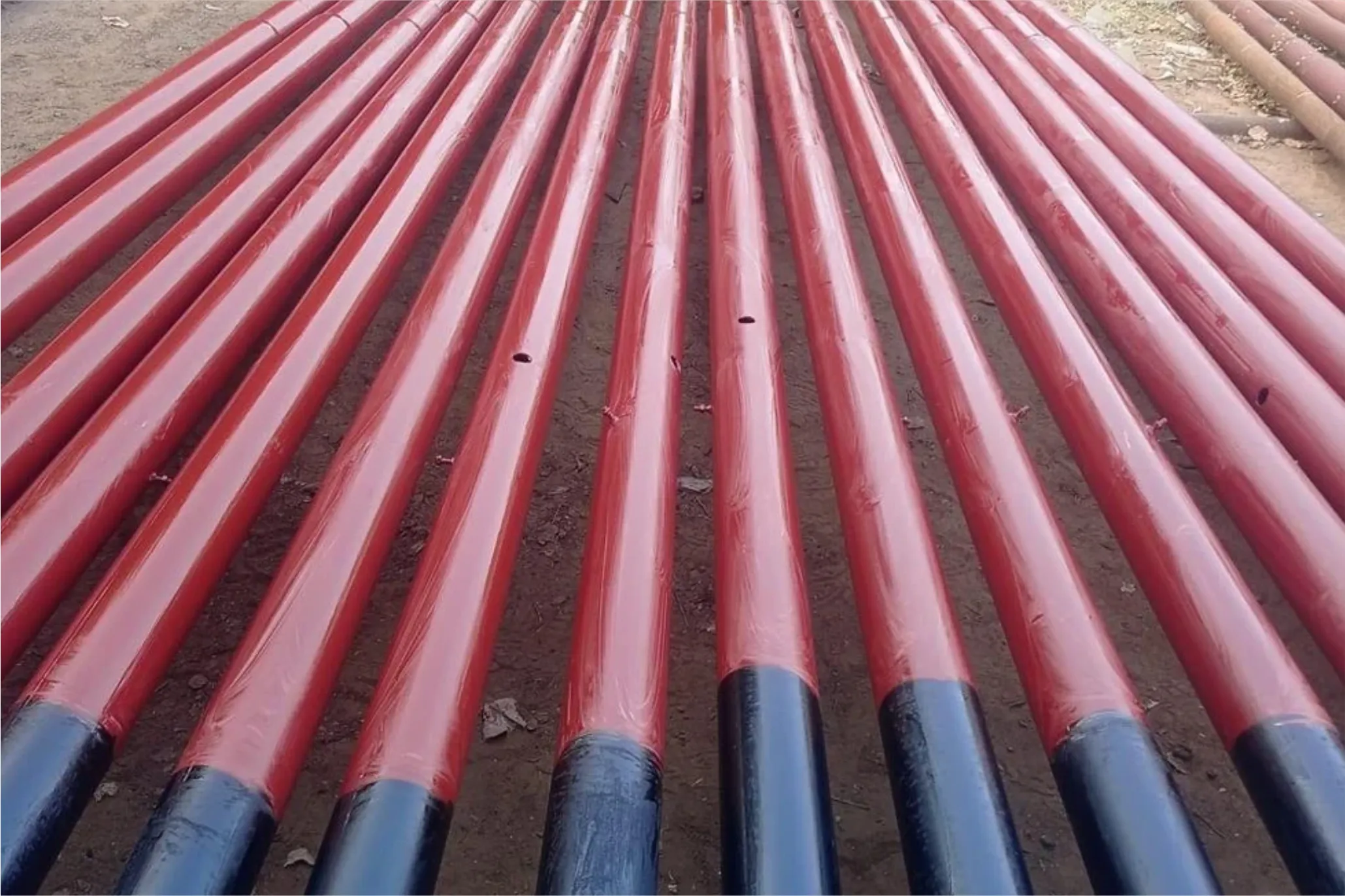

Swaged Steel Tubular Poles, being highly resistant to corrosion, offer a better option for replacement of traditional/old concepts. The bottom part, or planting depth, is protected by a layer of black bituminous paint, while the upper part is covered with layers of primer (Red oxide or zinc chromate) before receiving the final coat of customer-defined paint.

Swaged Steel Tubular Poles represent a new concept designed to meet customer requirements. Versatile demands of architects and designers are also met during manufacturing. These Steel Poles are also more economical than traditional options.

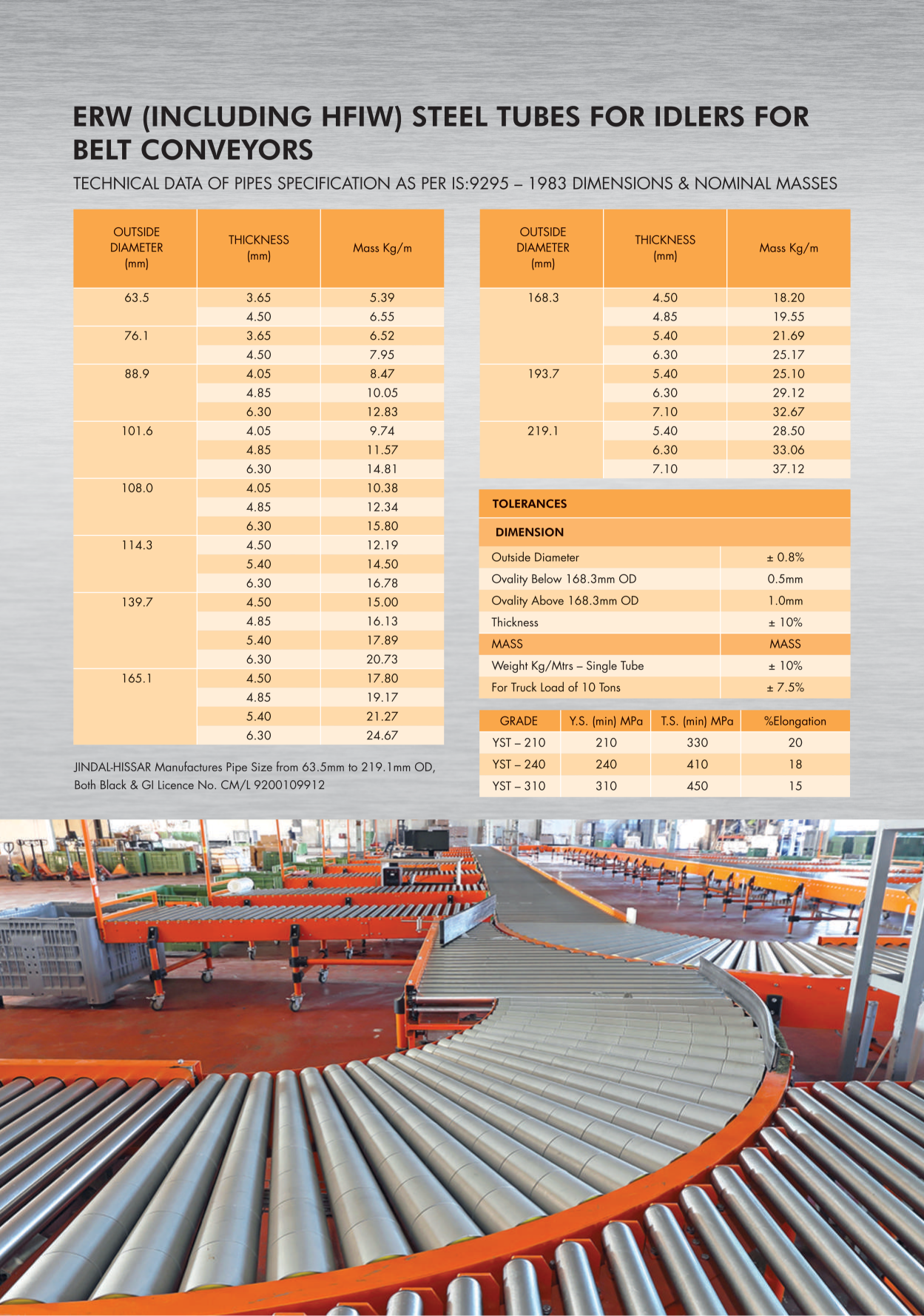

Jindal-Hissar, keeping up the tradition, manufactures high-quality ERW pipes to be used as idlers for conveyors. Jindal-Hissar pipes are manufactured using high-frequency induction forged welding, imparting a higher strength to the weld portion. In addition to other tests, a Drift Expansion test is done to check the welding of the pipe. This test is more stringent than the flattening test, as the pipe is expanded using a mandrel. The included angle of the mandrel shall be 30°, 45°, or 60°, depending on the customer requirement.

Standard pipe diameters for conveyor rollers manufactured by Jindal-Hissar are as follows: OD 76mm, 89mm, 101mm, 114mm, 127mm, 139mm, 165mm, 168mm, 193mm, and 219mm of different thicknesses. The ovality of the pipes is maintained well within the specified limits as defined by the Bureau of Indian Standards (BIS) in the specification.

Jindal-Hissar can supply pipes in all grades of specification: ERW 210, ERW 240, and ERW 310. Grade selection is done for MS black pipe idlers based on the conveyor's load-handling capacity as conveyed by the customer. The raw material used is of high strength, corrosion-resistant, durable, and sturdy. This raw material is sourced from high-end manufacturers, with JSW, TATA, and SAIL being our major suppliers.

Jindal-Hissar manufactures a wide range of MS pipes for idler rollers to satisfy stringent demands, from handling lightweight material to heavy-duty material for conveying various products like sugar, cement, coal, stones, paper, etc.
